CSP 505
CSP 505 is a simple 500kVAr water-cooled capacitor.
The CSP 505 water-cooled capacitor offers up to 500 kVAr at a variety of capacitance values.
This capacitor has an internal water cooling path which can be connected directly to the work coil, no bus-bar required .
Usually used as a single unit, for small induction heating equipment (about 50kW power supply).
Easy to mount and ready to use unit.
Standard applications: Induction heating, heat treatment, plasma applications, resonant circuits, high frequency inverters, etc.
Features:
- Polypropylene Water-cooled capacitor
- High Power Self-Healing capacitor
- Low ESR
- Low losses
- UL94-V0 available upon request.
Before using the product please check the support section in our website "Guide to using celem capacitors".
Product Gallery
Specifications
| TYPE | CSP 505 | ||||||||||

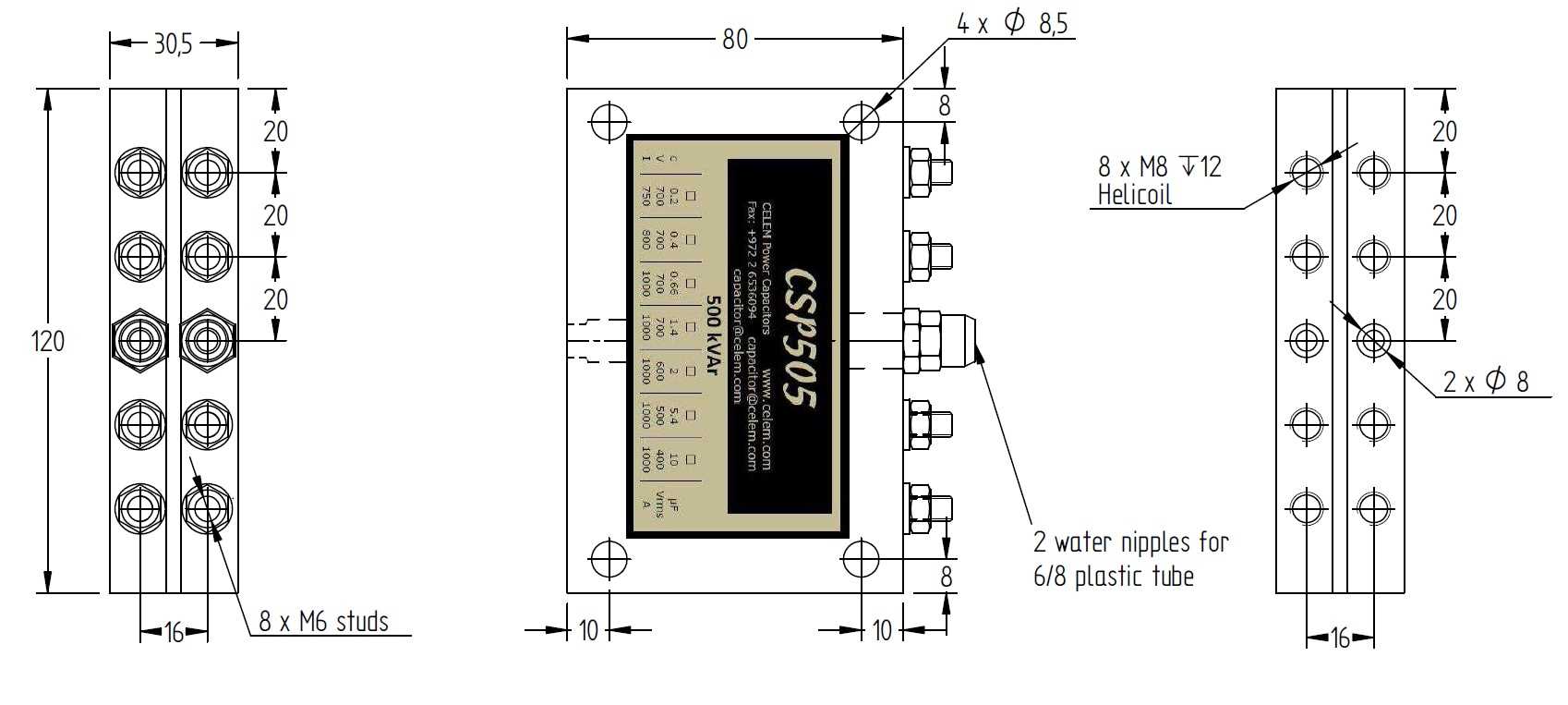

| Dimensions (LxWxH) | mm | 120 x 80 x 30.5 | |||||||||
| Weight | kg | 1.5 | |||||||||
| Capacitance (±10%) | μF | 0.2 | 0.4 | 0.68 | 1.4 | 2 | 2.6 | 5.4 | 10 | ||
| Sinusoidal Voltage | Vrms | 700 | 600 | 500 | 400 | ||||||
| Peak Voltage | Vpeak | 990 | 850 | 710 | 570 | ||||||
| Max. Current | Arms | 750 | 800 | 1000 | |||||||
| Max. Power | kVAr | 500 | 400 | ||||||||
| Freq Range @ Full Power | kHz | 812-895 | 406-509 | 239-468 | 116-227 | 111-159 | 85-122 | 59-59 | 40-40 | ||
| Stray Inductance | nH | < 5 | |||||||||
