CP 80/200
CP 80/200 is a 200VAr Mica capacitor for up to 100MHz and 150 degrees C.
The CP 80/200 mica conduction-cooled capacitor provides 200kVAr at ultra-high frequencies (up to 100MHz) and high ambient temperatures (up to 150°C).
The CP 80/200 can be manufactured to order with the capacitance of the customer’s choice. The values in the attached table are typical of the range of available values.
Standard applications: Induction heating, resonant circuits, medical imaging, heat treatment, EV (electric vehicle) charging, IPT, high frequency inverters, plasma applications, wireless power transfer, etc.
Features:
- Ultra-high frequency Conduction-cooled capacitor.
- Low ESR
- Low losses
Before using the product please check the support section in our website "Guide to using celem capacitors".
Product Gallery
Specifications
| TYPE | CP 80/200 | ||||||||||||||||

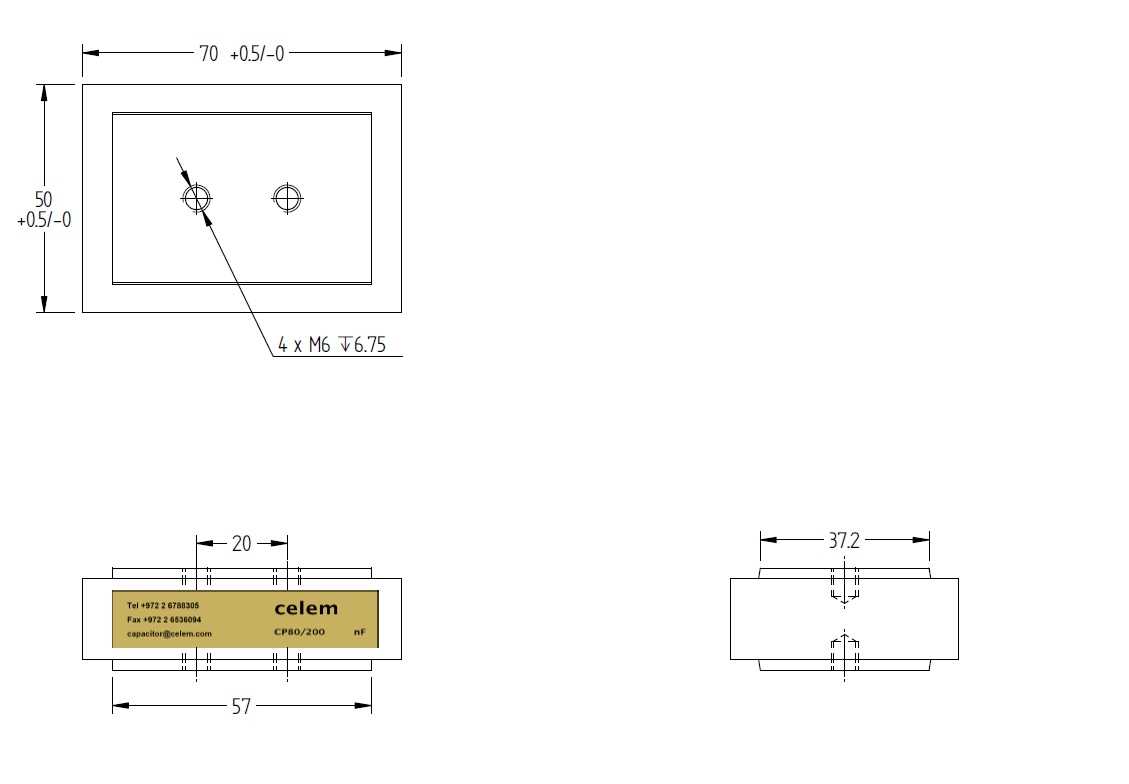

| Dimensions (LxWxH) | mm | 70 x 50 x 32 ( max ) | |||||||||||||||
| Weight | kg | 0.3 to 0.55 | |||||||||||||||
| Capacitance (±10%) | μF | 0.01 | 0.04 | 0.05 | 0.1 | 0.2 | 0.33 | 0.4 | 1 | 0.005 | 0.05 | 0.08 | 0.1 | 0.15 | 0.25 | 0.01 | 0.04 |
| Sinusoidal Voltage | Vrms | 500 | 1000 | 1500 | |||||||||||||
| Peak Voltage | Vpeak | 710 | 1410 | 2120 | |||||||||||||
| Max. Current | Arms | 400 | 200 | 135 | |||||||||||||
| Max. Power | kVAr | 200 |
|||||||||||||||
